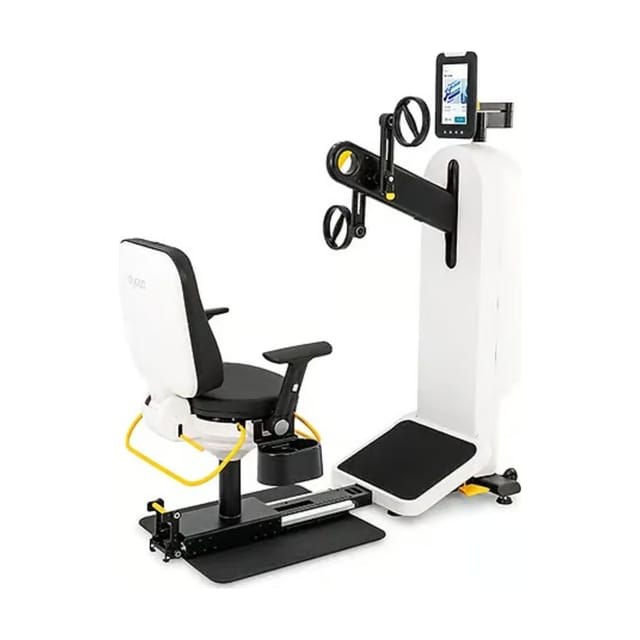

66debc38b2dbf700246763af Dyaco 8.5UE Rehabilitation Upper Body Ergometer https://www.afton.in/s/55b31c5573bc5c994472673c/66debbecb2dbf7002467498d/9ab980_8ce9730737574ac78cf48577a2e57d8c-mv2.jpg

The 8.5UE offers a very low starting resistance to accommodate various ranges of motion capabilities, ensuring gentle and
low-impact movements for the upper limbs, arms, and shoulders. Additionally, the adjustable crank length can be
tailored to meet each patient's specific range of motion requirements.
The 8.5UE is designed thoughtfully with the user in mind. It is feature-packed, and ADA-compliant. With the removable
rear seat, it facilitates seamless wheelchair access. Users can choose from three distinct workload options, including
Constant Power, Isokinetic, and Constant Resistance, making it adaptable to a wide range of rehabilitation needs.
Moreover, the system boasts a suite of neurological programs and features tailored to rehabilitation. The 10-inch
computer console is equipped with multi-connectivity protocols and provides access to cloud analytics, making the
8.5UE an ideal tool for both therapists and patients, promoting enhanced therapy and rehabilitation outcomes.

Timer Program
A quick set-up, large font, egg timer type display for patient warm-ups.

Symmetry
The Symmetry program is designed to assess and quantify the balance of power
between the left and right arms throughout the rotation. This program delivers both a
graphic and numeric representation of arm power symmetry.

Wingate Test Program
The industry standard for evaluating power output and fatigue rates during anaerobic assessments.

Power Distribution
The program offers a visual representation of power distribution in watts throughout
the pedal rotation, providing valuable insights into the patient's performance.

Magnetic Resistance System
Our system offers a low start-up threshold, delivering a wide range of smooth,
comfortable, and highly precise resistance levels.

Workload Modes
Catering to various rehabilitation needs, users can choose from three distinct
workload options: Constant Power, Isokinetic, and Constant Resistance.

Bidirectional Resistance
This functionality allows for pedaling in both forward and reverse directions,
enabling immediate retro-cycling to diversify exercise options.

Arm Height Adjustment
Conveniently located foot pedals on both sides of the equipment facilitate easy
adjustment of the arm height for therapists.

Multi-function Handle
Located near the patient, this handle is equipped with remote shortcut keys for
console operation. Additionally, it features an arm height adjustment lever for added
convenience, streamlining the adjustment process for optimal convenience.

Adjustable Crank Arm Length
For patients with limited mobility or recovering from injuries, the adjustable
crank arm length enables handle grips to be moved along the crank, accommodating
a customized range of motion, thus promoting tailored and comfortable exercise experiences.

Rotating Hand Grips
The handles are engineered to swivel naturally in accordance with wrist movement, enhancing the user's ergonomic experience.

Hand Plate
An accessory that complements shoulder patterns and the Symmetry program.

MED Range 8 Series

The whole new 8.0 Series comes furnished with a 10" touch panel console, providing direct access to the Dyaco Insight cloud computing
platform for data analytics. The Beacon, positioned on top of the console, employs vividly colored lights to assess exercise intensity and
offer physical therapists an immediate visual cue regarding their patients' advancement. The broad connection, wireless capabilities,
multiple access login, and real-time streaming data transfer are all integrated features designed to amplify therapists' productivity and
support patients' rehabilitation outcomes.

360-Degree Articulating Arm
This feature allows clinicians to manipulate the console from any position around the machine, ensuring both a suitable
distance and angle for optimal patient observation.

Beacon
Utilizing vibrant lights positioned atop the console, the Beacon efficiently assesses exercise intensity and provides a quick
visual signal to physical therapists regarding their patients' progress. The Beacon can be configured to display information
such as the remaining Program Time, Power level, Exercise goals, or Heart Rate percentage.

Wireless Connectivity
With Wi-Fi, the console can connect to Dyaco Insight, two Bluetooth channels for wireless heart rate devices and
third-party apps, as well as ANT+ compatibility.

Broad Connection
The console offers versatile connectivity options, including hardwired connections for data streaming to PCs and links to
external devices like cardiac stress testing systems.

Specifications

Quick Start FeaturesQuick Start, Timer
Programs

Manual / Hill / Plateau / HIIT / Facility / Heart Rate Target / Calories Target / METs Target /

Wingate Test / Steep Ramp Test / Conconi Test / Power Distribution

Workload OptionIsokinetic, Watt Control, Constant Resistance
Workload Range5 to 1000 Watts
Resistance Level1 to 50 Levels
Resistance TypeMagnetic Resistance System
10.1" Touch Panel ConsoleYes
Beacon (Color change based on Time,
Progress or Goals )
Yes
Data TransferYes
Wireless TX/RX (BLE FTMS, ANT+)Yes
Wireless TX/RX (Wi-Fi)Yes
Comm. Port - NFC (for log in)Yes
Comm. Port - RS232 (for Cardiac Stress Test)Yes
Comm. Port - USB Type B (for Cardiac
Stress Test & Data Transfer)
Yes
Bi-Directional ResistanceYes
Fore/Aft/Rotate SeatYes
Power90 - 240 V AC
Max User Weight Capacity200 kg (440 lbs.)
SKU-ETFG8SG80
in stockINR 200000
